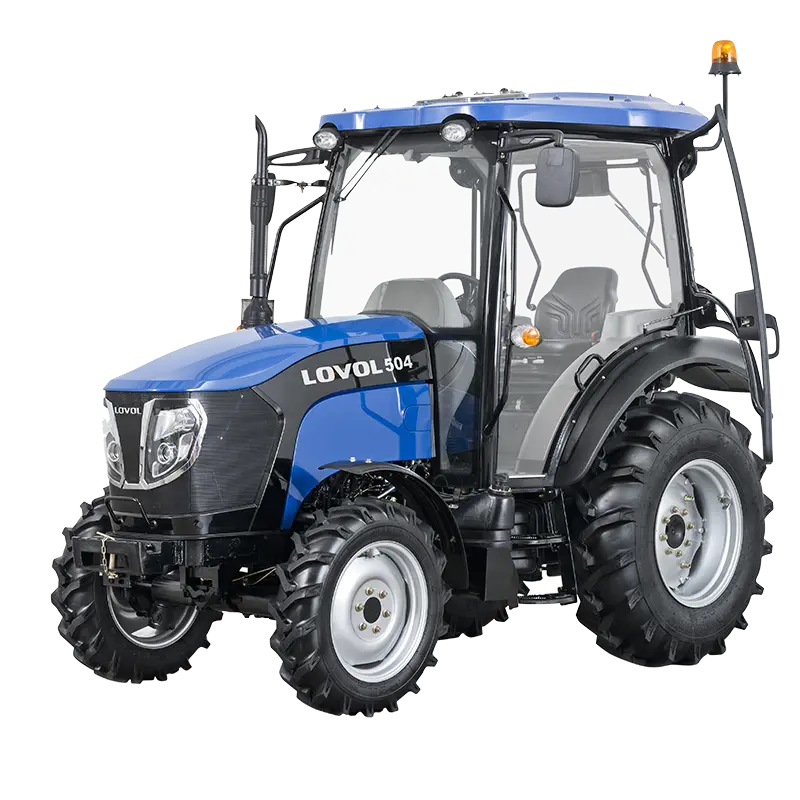

TB504 Premium Utility Tractor
A high-performance multi-role tractor offering exceptional versatility for modern small farms and specialized agricultural operations.
- Dual Engine Options: Choose between a rugged 4-cylinder Euro II mechanical engine or advanced Euro V-compliant Doosan D18/D24 powerplants
- Professional-Grade Transmission: 12F+12R synchronized main gearbox with mechanical shuttle for precision control
- Enhanced Capability: Heavy-duty design supports demanding implements and continuous operation
Ideal For: Commercial small farms, organic operations, specialty crop production, and agricultural contracting work
Specifications
| Engine Model | 498BT / 4 cylinders / 3.168 L |
| Horsepower(hp) | 50 |
| Emission Standard | Stage Ⅱ |
| Gear Quantity | 12+12 |
| Gearbox Shift Mode | Sleeve Shifting/Synchronizer Shifting |
| Structure Weight(kg) | 2695 |
| Speed Range | 2.37-38.46 |
| Hydraulic Output Flow(L/min) | 32/43 |
| Wheel Base(mm) | 1990 |
| Front Wheels | 8.3-20 |
| Rear Wheels | 14.9-24 |
